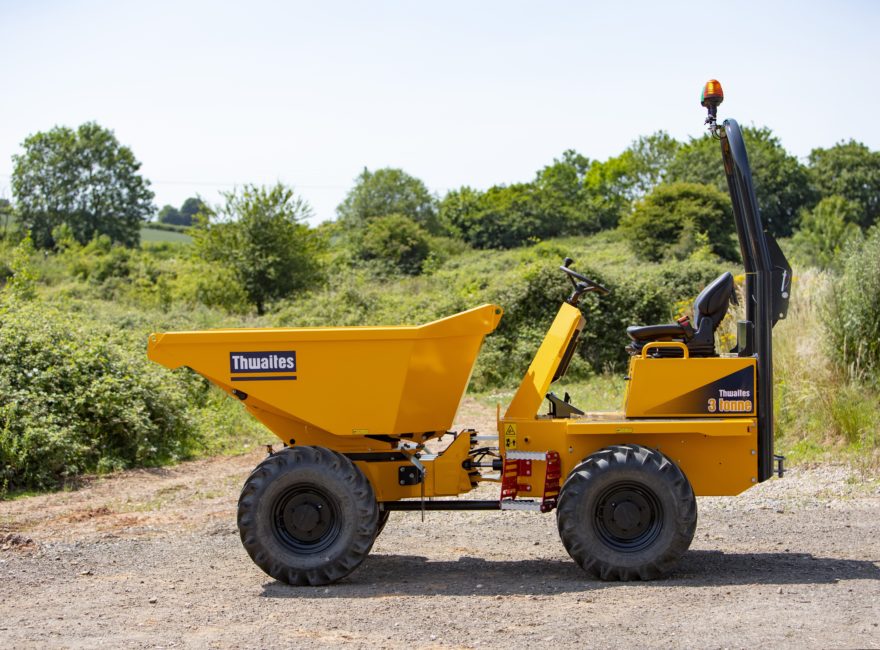

3ton dumper (straight)

Available in both straight and swivel tip configurations, these machines from industry-leading manufacturers offer the flexibility and performance tradesmen need to keep the job moving.

• Straight and swivel tip options for versatile tipping
• Robust design for demanding site conditions
• Trusted machinery, locally available

With flexible hire terms and fast access, Tru Plant makes it easy to get the right dumper on-site — so you can load up and tip out without delay.

General Specs

• Payload capacity: 3,000 kg
• Skip capacity: ~1,650 litres (heaped), ~1,350 litres (struck), ~800 litres (water)
• Unladen weight: ~2,250–2,300 kg
• Fuel capacity: ~40 litres
• Engine: Yanmar 4TNV88, 4‑cylinder water‑cooled diesel, Stage V compliant, ~33.4 kW (45 hp) at 2,200 rpm

Dimensions

• Overall length: ~4,000 mm
• Width: ~1,950 mm
• Height (ROPS up): ~3,000 mm
• Height (ROPS down): ~2,100 mm
• Maximum tipping height: ~1,600 mm

Performance

• Drive: Synchro‑shuttle transmission, four‑wheel drive
• Brakes: Oil‑immersed disc brakes, fail‑safe parking brake
• Noise levels: Operator’s ear ~84 dB(A)
• Traction: Excellent stability and ground clearance for rough terrain

Features

• Straight tip skip: Simple, robust tipping mechanism for quick unloading
• Mid‑size capacity: Balances compact maneuverability with higher payload than 1T models
• Safety systems: ROPS frame, seatbelt, reversing alarm, emergency stop
• Operator comfort: Adjustable suspension seat, ergonomic controls, good visibility
• Stage V compliance

*Exact specifications may vary.
