Description

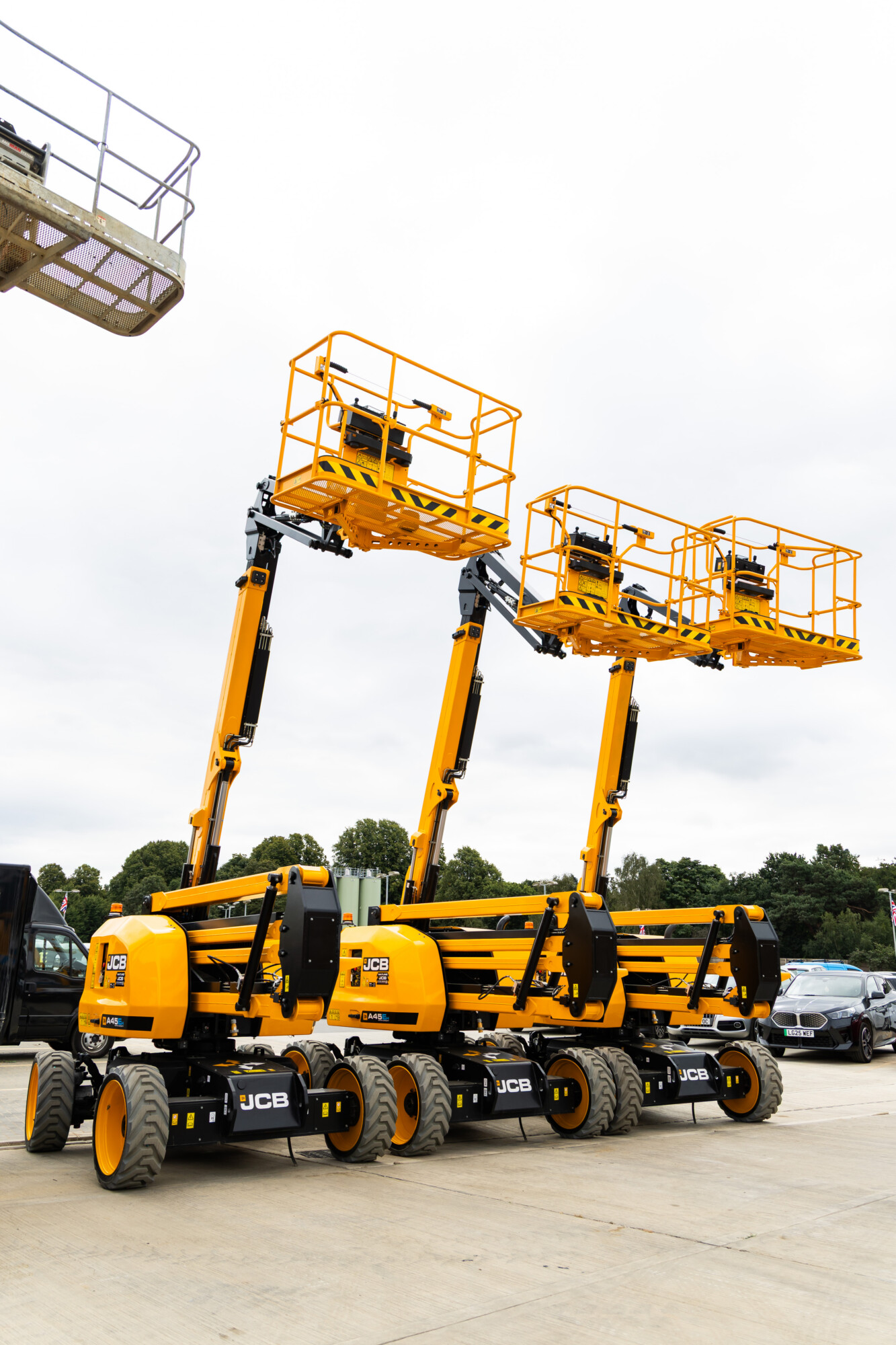

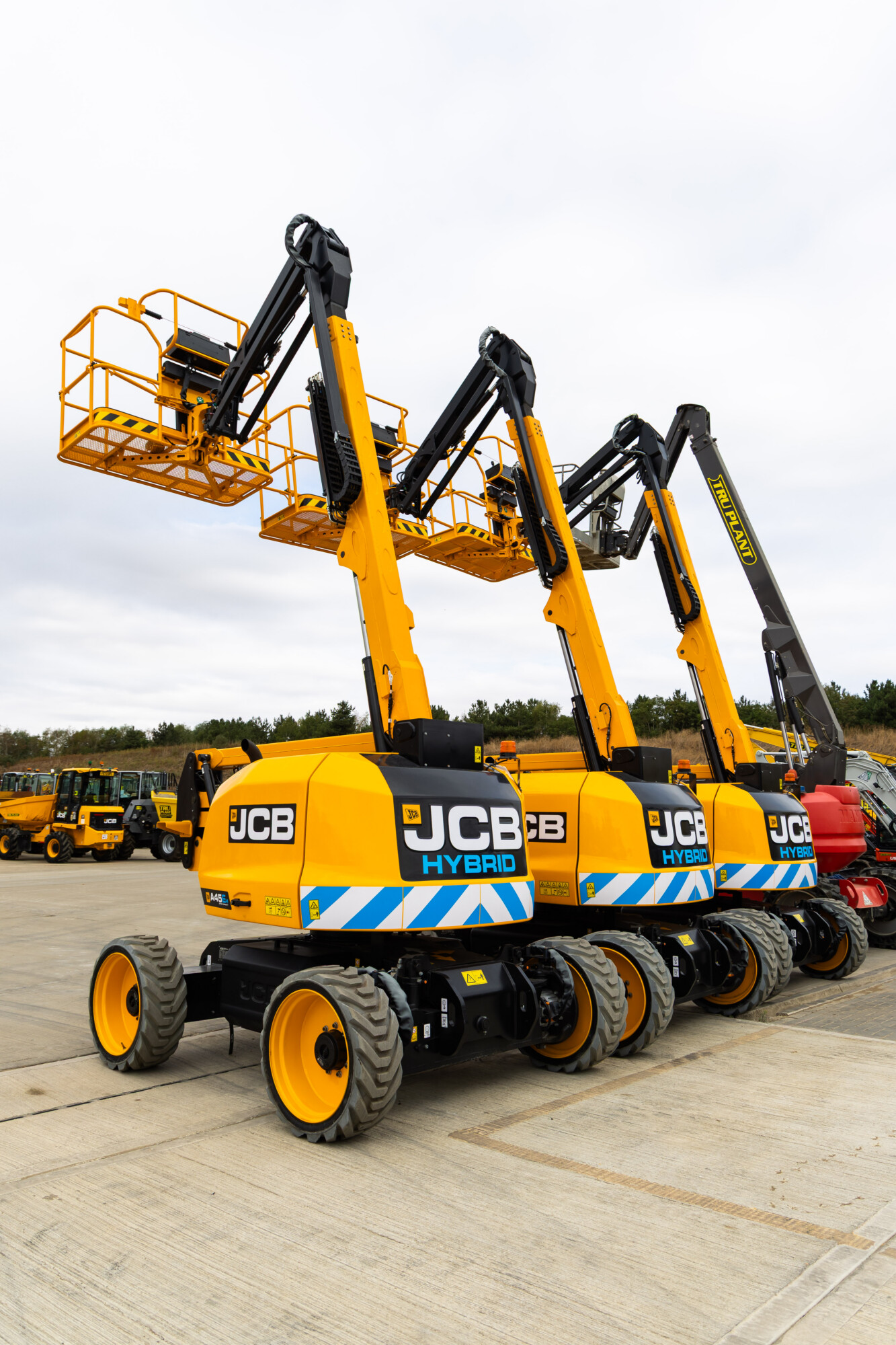

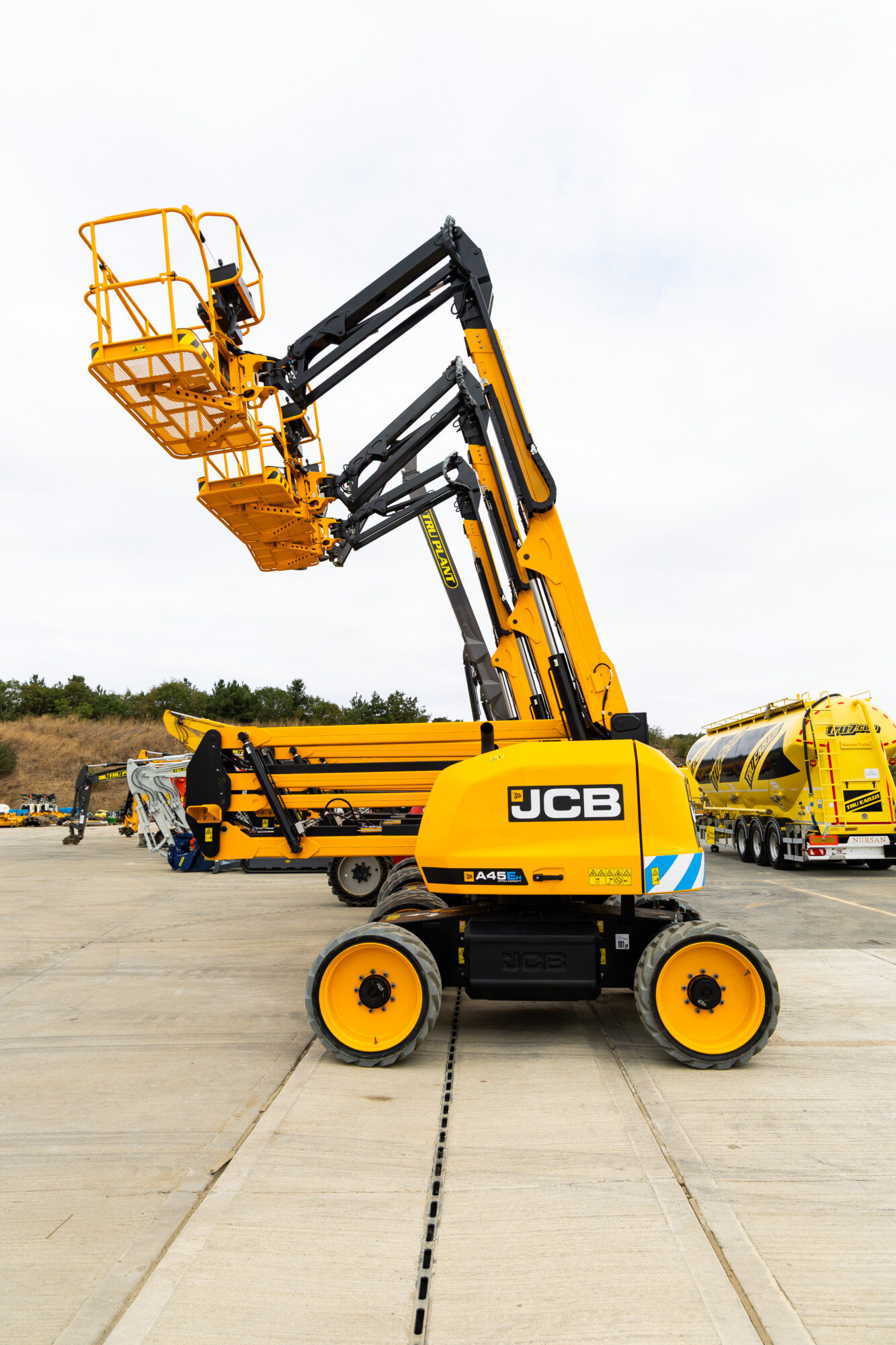

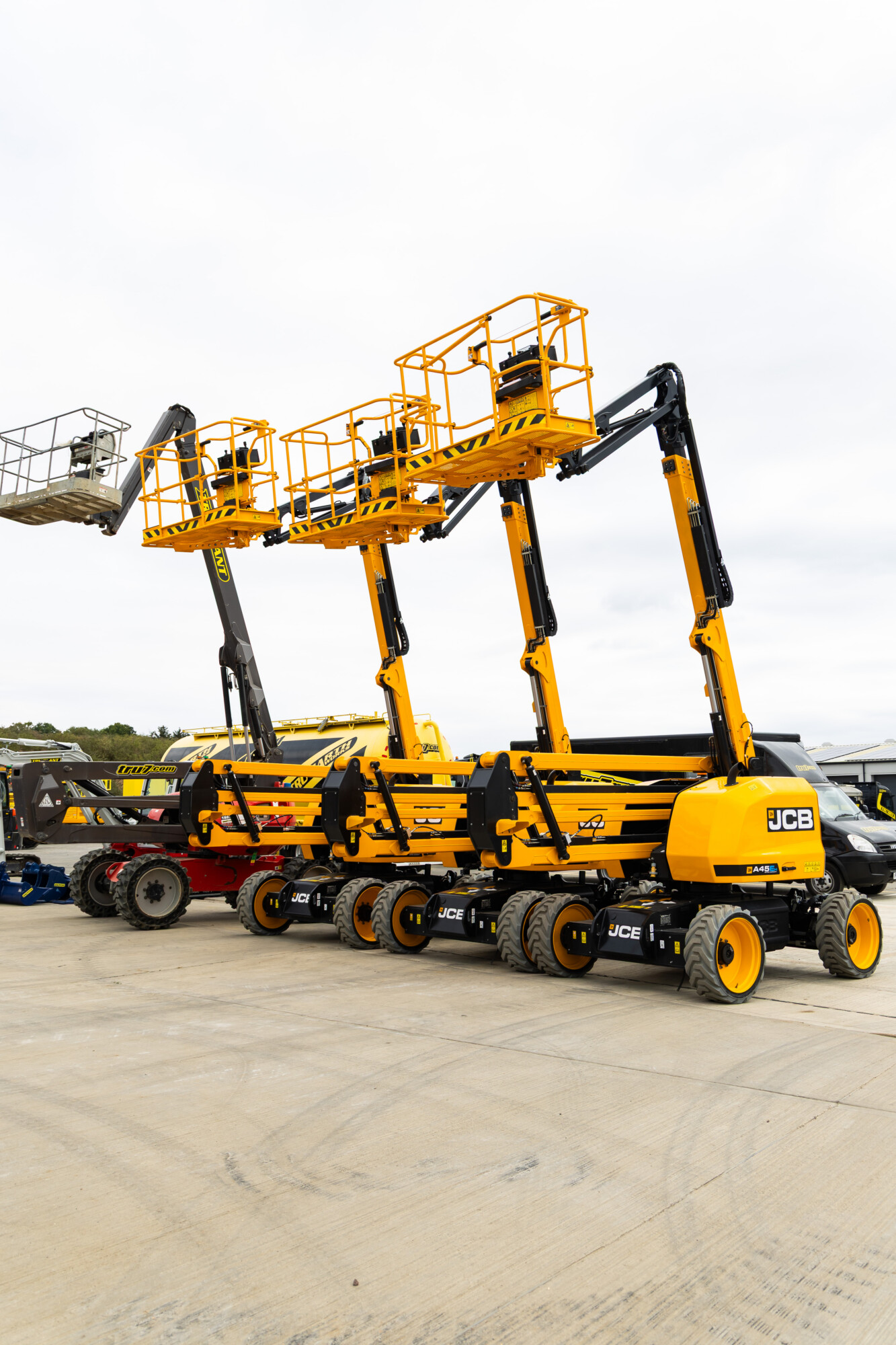

JCB A45EH Access Platform (Cherry Picker)

Machine Specifications

The JCB A45EH is a hybrid articulated boom access platform designed for construction, maintenance and industrial applications, offering strong reach, manoeuvrability and low-emission operation.

Key Specifications

• Maximum Working Height: 15.84 m
• Maximum Platform Height: 13.84 m
• Maximum Horizontal Outreach: 7.47 m
• Platform Capacity: 300 kg
• Maximum Occupants: 2
• Machine Weight: 7,930 kg
• Power Type: Diesel-Electric Hybrid
• Drive: 4-Wheel Drive
• Maximum Gradeability: 40%
• Maximum Travel Speed: 7 km/h
• Boom Rotation: 355°
• Platform Rotation: 160°

Machine Dimensions

• Overall Length: 7.04 m
• Overall Width: 2.26 m
• Overall Height: 2.23 m
• Ground Clearance: 0.31 m

Key Features

• Hybrid power system for extended operation
• Quiet, low-emission electric operation
• 4WD for improved rough-terrain capability
• 300 kg unrestricted platform capacity
• Articulated boom for improved up-and-over access
• Secondary guarding and platform safety systems
• JCB LiveLink telematics

For more information, please get in contact with us on 01473 612761 or email us at [email protected]
