Description

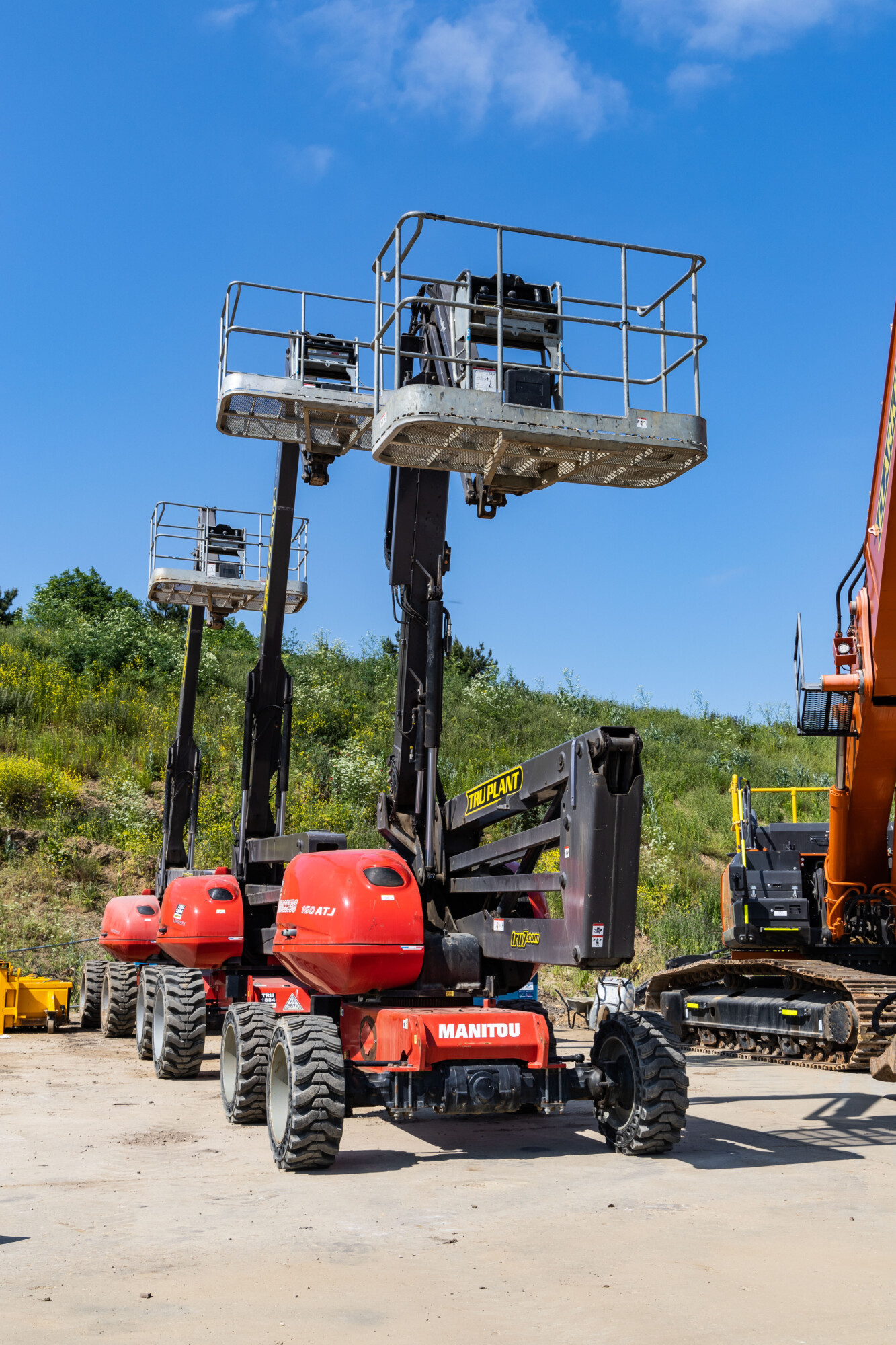

Manitou 160 ATJ Mobile Elevating Platform Hire

The MANITOU 160 ATJ is a versatile articulated boom mobile elevating work platform designed for construction, maintenance, installation and high-level access work. Its all-terrain chassis, 4WD and 4-wheel steering provide excellent manoeuvrability on challenging ground, while the articulated boom offers a 16.02m working height and 8.30m maximum outreach.

Specifications:

• Working height: 16.02 m
• Platform height: 14.02 m
• Maximum outreach: 8.30 m
• Platform capacity: 230 kg
• Machine weight: Approx. 6,160 kg
• Engine: Kubota D1105-E4B
• Engine power: 18.5 kW / 24.5 hp
• Overall width: 2.32 m
• Overall length: 6.68 m
• Overall height: 2.37 m
• Drive: 4WD
• Steering: 4-wheel steering
• Gradeability: Up to 45%
• Applications: Construction, maintenance, installation & high-level access work

*Please note the above is a general specification for this machine, actual specification may vary - for more information please contact our plant hire desk.

For more information, please get in contact with us on 01473 612761 or email us at [email protected]
