Description

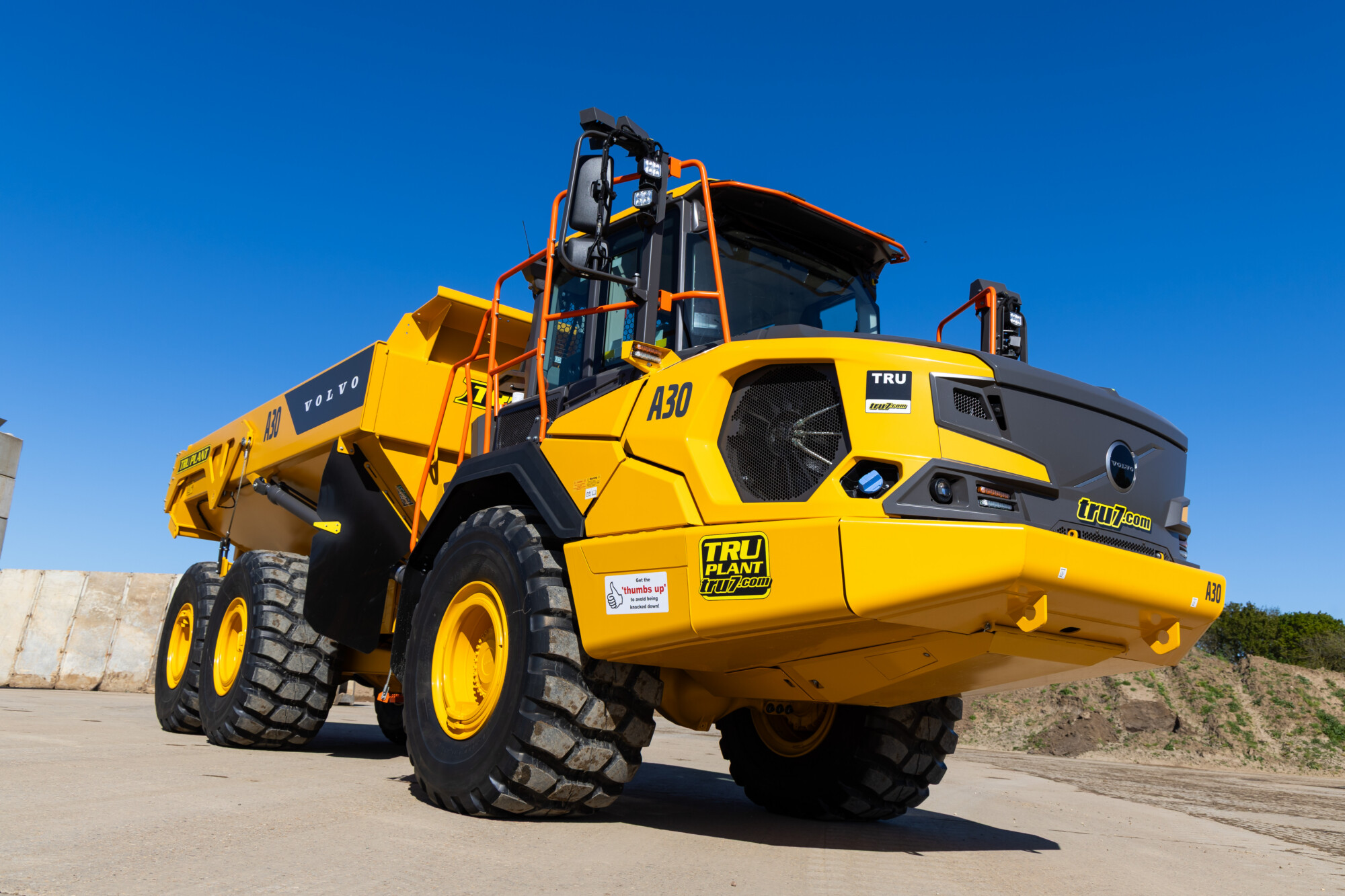

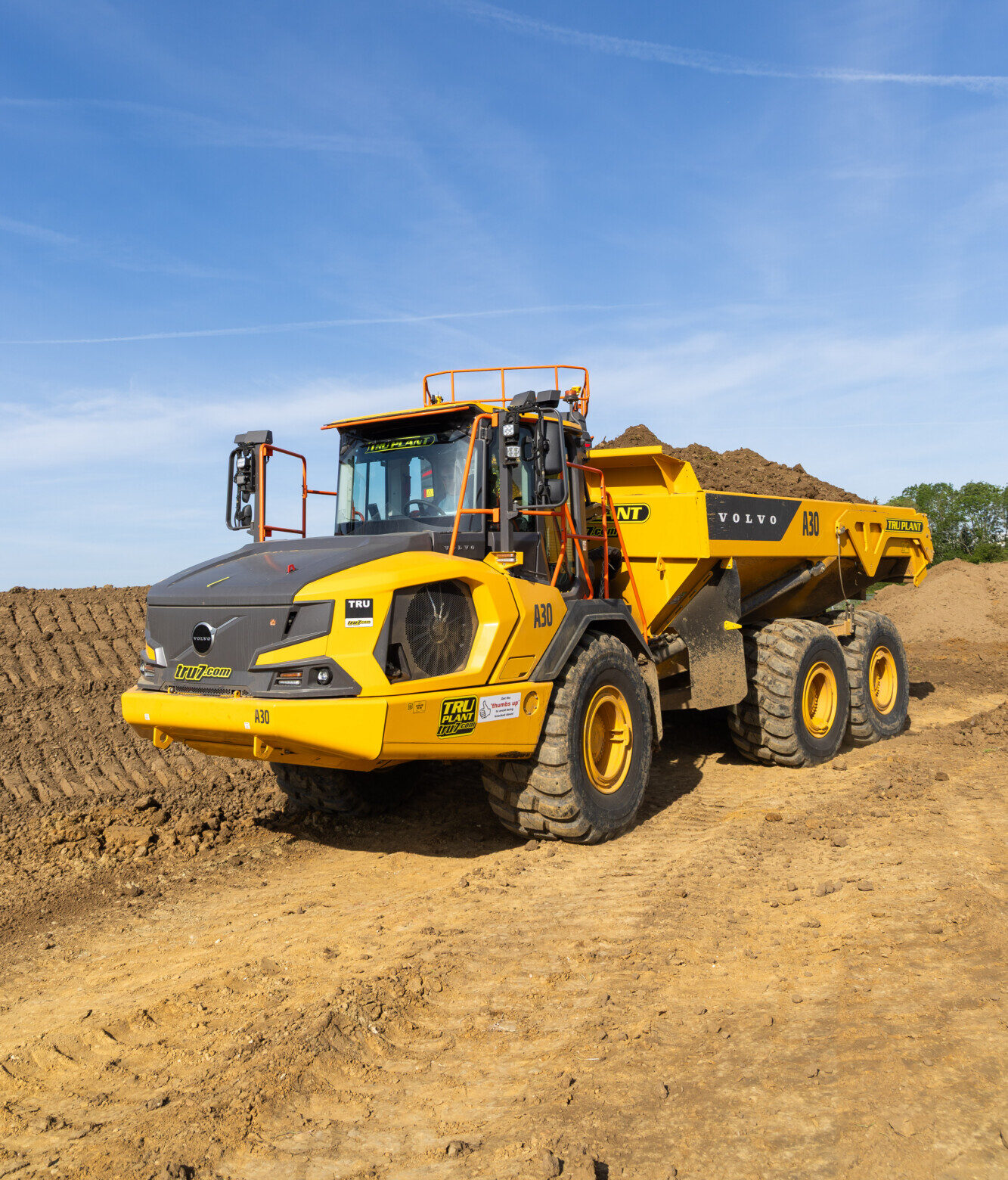

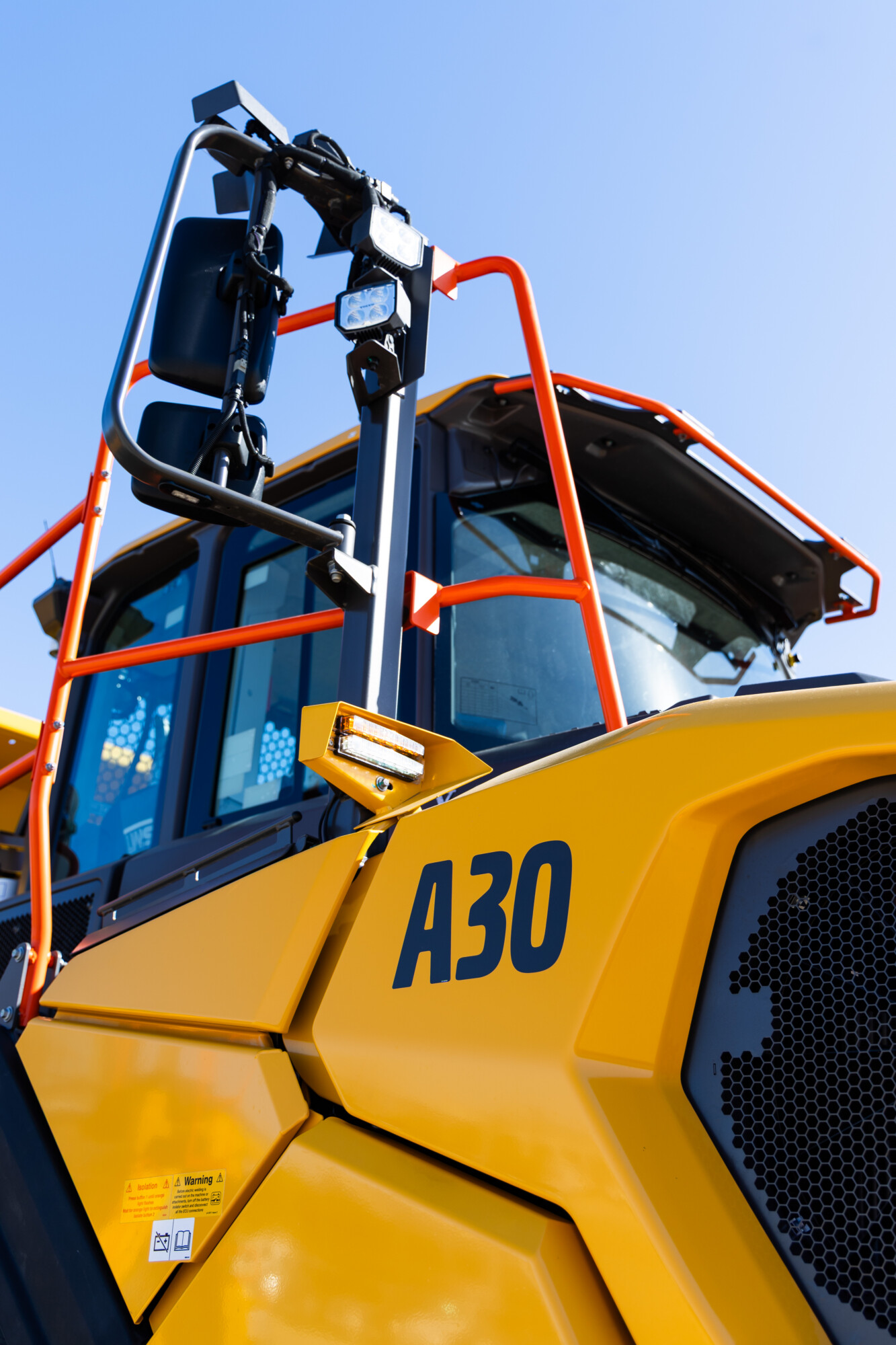

Volvo A30J Dump Truck (ADT)

Machine Specifications

The Volvo A30J is a Stage V / Tier 4f articulated hauler designed for demanding work in construction, quarrying and infrastructure. It delivers class‑leading traction, operator comfort and uptime, supported by Volvo’s proven drivetrain and advanced traction control.

Key Performance Specifications

• Payload Capacity: 29,000 kg (32 short tons)
• Body Volume (SAE 2:1 heap): 17.8 m³ (23.3 yd³)
• Maximum Speed: 53 km/h (33 mph)
• Operating Weight (Gross): 115,302 lbs (≈52,300 kg)
• Net Weight: 51,368 lbs (≈23,300 kg)

Engine

• Engine Model: Volvo D11M
• Max Gross Power: 265 kW / 355 hp @ 2,000 rpm
• Max Gross Torque: 1,505 lbf·ft @ 1,200 rpm
• Emissions: Stage V / Tier 4f compliant

Drivetrain & Traction

• Volvo Drivetrain: Fully integrated for optimal performance and reliability
• Automatic Traction Control (ATC) with Terrain Memory for improved grip and reduced tyre wear
• 100% Differential Locks across all axles for maximum off‑road capability
• All‑Terrain Bogie and Hydro‑Mechanical Steering for stability on uneven ground

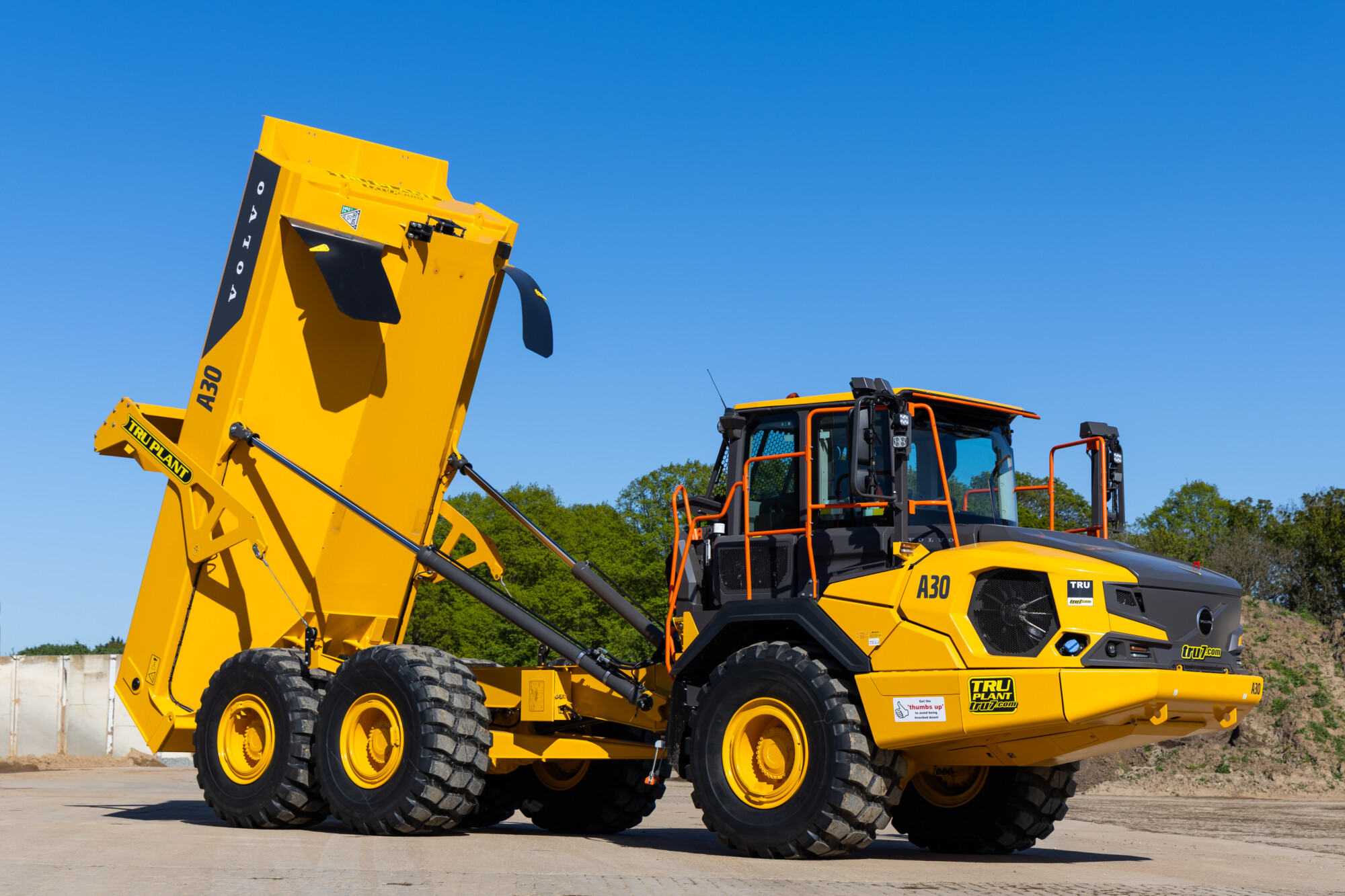

Body & Dumping

• Body Volume (Heaped): 17.8 m³ (23.3 yd³)
• Outstanding Tipping Stability with optimised chassis and suspension geometry
• Load & Dump Brake for controlled, efficient cycles

Operator Environment

• Volvo Co‑Pilot Display: Integrated touchscreen for machine status, cameras, climate and media
• Dynamic Instrument Cluster positioned directly in front of the operator
• Enhanced Visibility: Redesigned hood, wider wiper coverage, optional front/rear cameras
• Easy Access: Repositioned door entrance, robust platform, dual railings, entrance lighting
• Suspension: Durable gas‑hydraulic suspension for comfort and stability

Technology & Safety

• Hill Assist, Cruise Control, Downhill Speed Control for safer operation on gradients
• Dump Support System for safe tipping on uneven ground
• Haul Assist with On‑Board Weighing, Connected Map, and Performance Indicator
• CareTrack Telematics and remote monitoring for uptime and fleet optimisation
